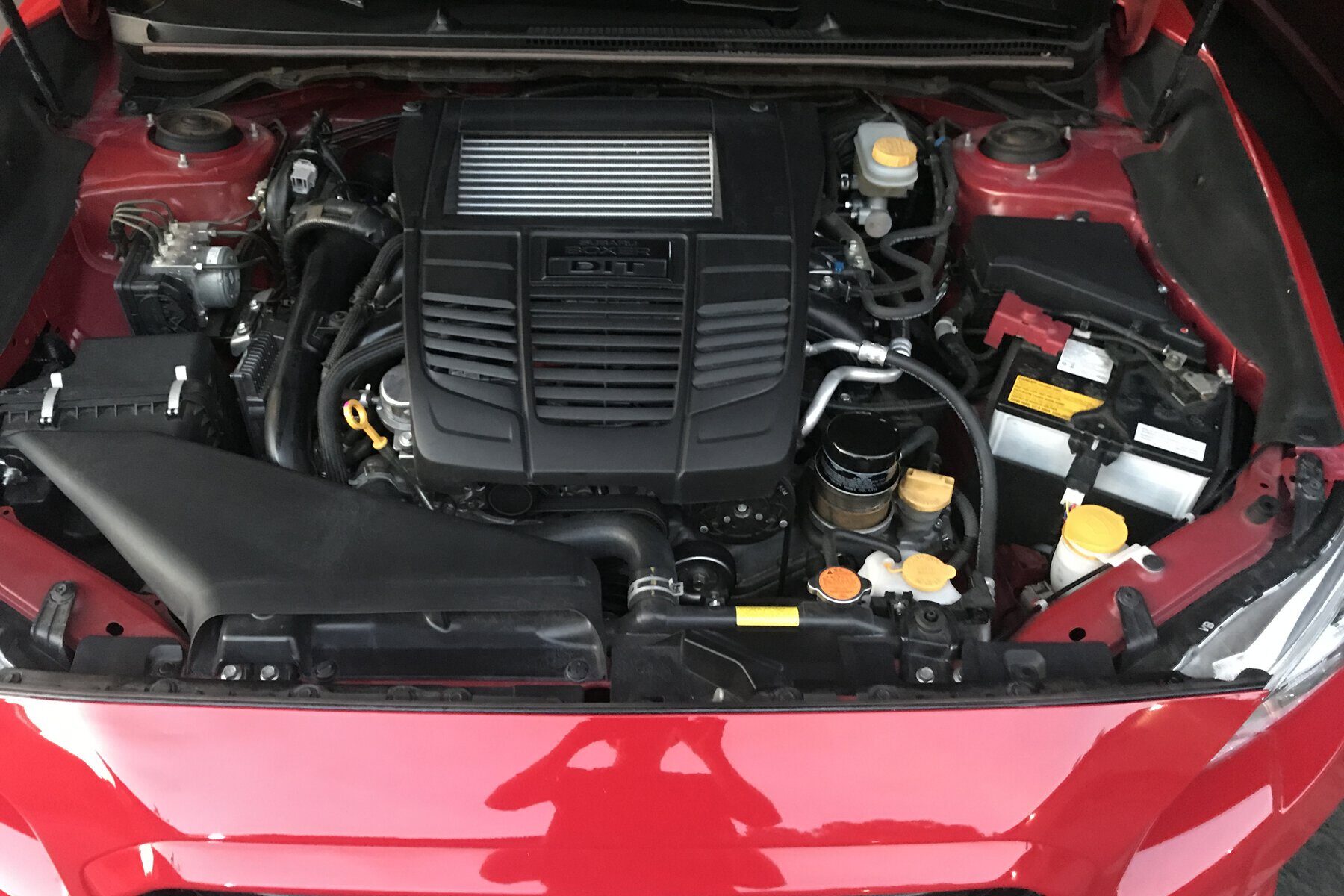

The Subaru WRX top mount intercooler is one of the most visible parts under the hood scoop, but it is not just an engine-bay dress-up part. It cools compressed air after the turbocharger and before the throttle body. Cooler charge air is denser, more knock resistant, and easier for a tuner to work with when the car is making more boost.
The stock intercooler is fine for a stock WRX. It becomes a weak point when the car is tuned, driven hard in hot weather, or asked to repeat back-to-back pulls without heat soaking. That is why a top mount intercooler is still a common upgrade for a WRX Stage 2 build, even after the aftermarket shifted away from old downpipe-heavy recipes.
Quick answer: for a 2022+ VB WRX, the ETS TMIC is the best broad recommendation because it is direct-fit, well reviewed by current VB owners, and works with the factory charge pipe. The PERRIN TMIC is the best value-oriented VB pick if you want a large core and broad 2022-2026 fitment. For a 2015-2021 VA WRX, the Process West Verticooler is the most serious top-mount solution for heat-soak control, while the Mishimoto street/race kits are easier recommendations for owners who want a conventional top mount with strong documentation.
Choose Your WRX Intercooler Path
How We Picked These WRX Intercoolers
We did not physically test every intercooler. We checked current manufacturer specs, retailer pages, installation notes, public product reviews, old and current owner discussion, and tuner guidance. Intercooler testing is difficult to compare across brands because ambient temperature, tune, dyno airflow, heat-soak procedure, and sensor placement all change the result, so we weighted current fitment and real-world install feedback alongside published temperature and power claims.
Review sources checked include manufacturer data from Mishimoto, PERRIN, Process West, ETS, GrimmSpeed, and COBB/Garrett, plus retailer listings from MAPerformance and forum/tuner discussion from NASIOC, Whirlpool, and Evans Tuning.
| Factor | Weight | What mattered |
|---|---|---|
| Correct fitment | 25% | VB vs VA, engine cover/ducting, charge-pipe compatibility |
| Cooling and flow evidence | 25% | Published temp data, pressure drop claims, heat-soak behavior |
| Owner and install signal | 20% | Review volume, fitment complaints, ease of installation |
| Tuning path | 15% | Stock-tune compatibility, value with a custom tune, stage 2 usefulness |
| Value and support | 10% | Price, warranty, availability, replacement parts |
| Daily-driver tradeoffs | 5% | Noise, maintenance access, engine-cover changes, visual preference |
Best 2022+ VB WRX Top Mount Intercoolers
| Pick | Best for | Core / design notes | Main drawback |
|---|---|---|---|
| ETS TMIC | Most VB WRX owners | 21 x 7 x 4 inch core, direct bolt-on, factory charge pipe compatible | Anodized colors can add lead time |
| PERRIN TMIC | Value and broad fitment | 660 cubic inch core, 2022-2026 compatibility, optional bracket | Off-road-use language on product page |
| Mishimoto TMIC Kit | Documented install and warranty | 4 inch bar-and-plate core, shroud hardware, optional charge pipe kit | More expensive as a full kit |
| Process West TMIC | Premium top-mount capacity | 193 x 523 x 110 mm dual-entry core | Higher price and less US retailer review volume |
The ETS top mount is the safest first recommendation for most VB WRX owners because it checks the practical boxes: direct bolt-on fitment, factory charge-pipe compatibility, TIG-welded construction, pressure testing, and a large 21 x 7 x 4 inch core. ETS also offers anodized colors, which matters to the many VB owners who want the intercooler visible through the hood scoop.
Owner review volume is better here than it is for many VB TMICs. ETS shows 27 reviews at the time checked, all positive, with repeated praise for weld quality, appearance, and easy installation. MAPerformance lists the same core specs and notes that silver cores usually ship faster than anodized cores.
Buy if: you have a 2022+ WRX and want a proven direct-fit top mount before or alongside a tune.
Skip if: you want the cheapest possible option or need a color immediately and cannot wait for anodizing.
Review evidence: strong for a newer VB product. Public reviews repeatedly mention quality and straightforward install; there is less independent long-term heat-soak data than there is for older VA products.
PERRIN’s VB TMIC is the value pick because it lists a large 660 cubic inch core, compatibility across 2022-2026 WRX applications, and manual/CVT compatibility. PERRIN says the core is 88 percent larger than stock and can lower air charge temperature by up to 14 degrees F in its stated conditions.
The PERRIN page also says no tuning is required, which makes this less intimidating for a stock or lightly modified car. That does not mean a tune is pointless. A tune is how you get the most from lower intake temperatures, especially when the intercooler is paired with an intake, charge pipe, or other airflow changes.
Buy if: you want a large VB top mount at a lower price than many full kits and you value 2022-2026 fitment.
Skip if: the off-road-use/legal language on the product page is a problem for your build or state.
Review evidence: strongest on specs and current manufacturer support. Owner-review depth is thinner than ETS, so we weighted fitment breadth, warranty, and published specs more heavily.

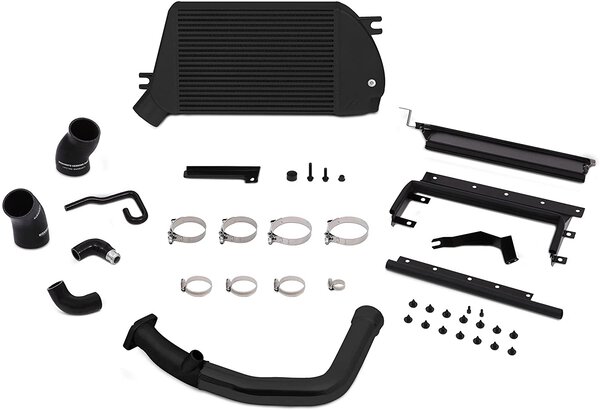

Mishimoto’s VB kit is the most complete documented option in this section. The full kit can include the intercooler, charge pipe, shroud, coupler, clamps, and shroud hardware depending on configuration. Mishimoto lists FA24DIT/VB fitment, a 4 inch bar-and-plate core, 600 horsepower support, and its lifetime warranty.
The details make this a good pick for owners who want a more complete package rather than mixing a core, charge pipe, and ducting separately. Mishimoto also notes an installation check that gets missed often: inspect the OEM inlet gasket and replace it if damaged or warped.
Buy if: you want a full VB intercooler package with brand documentation, warranty support, and shroud hardware.
Skip if: you already have a charge pipe or want the lowest-cost core-only solution.
Review evidence: strong manufacturer test/documentation signal, moderate owner-review signal. Mishimoto has deep Subaru intercooler development history, but VB long-term owner data is still newer than VA.

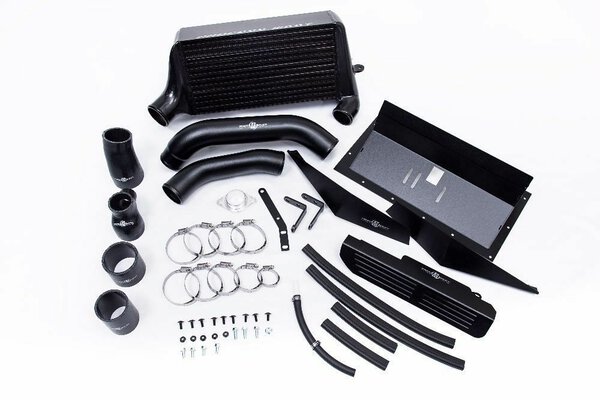

Process West takes a different approach from the conventional VB cores. The current VB kit uses a large 193 x 523 x 110 mm core and a dual-entry design intended to distribute airflow across the core more evenly. Process West positions it as the largest top-mount upgrade available for the VB WRX.
This is the premium option for someone who wants to stay top mount but is already thinking about hard driving, summer heat, and headroom. It is also the most expensive recommendation here, and US review/retailer signal is lighter than ETS or PERRIN.
Buy if: you want a high-capacity VB top mount and are comfortable paying for a more specialized design.
Skip if: you want the easiest US retailer return path or the most owner-review volume.
Best 2015-2021 VA WRX Top Mount Intercoolers
| Pick | Best for | Core / design notes | Main drawback |
|---|---|---|---|
| Process West Verticooler | Heat-soak control | 15-degree slant-mount design and dedicated ducting | Premium price, more involved packaging |
| Mishimoto Street TMIC | Daily street builds | 76% core-volume increase, stock engine cover/charge-pipe compatibility | Less headroom than the race kit |
| Mishimoto Race TMIC + charge pipe | Stage 2/tuned builds | 625 cubic inch core, charge pipe, air diverter | Does not fit stock engine cover |
| GrimmSpeed TMIC | Fit and finish | Bar-and-plate core, integrated splitter, 5-ply couplers | Availability can be limited |
| TurboXS TMIC | Lower-cost large core | 13 x 10 x 4 inch core, OEM charge-pipe compatibility | Engine-cover trimming and weaker review signal |
The Process West Verticooler is the most distinctive VA WRX option because it is not just a bigger horizontal brick. It mounts the core at a 15-degree slant and uses revised ducting to improve airflow through the core and away from engine-bay heat. Process West’s own back-to-back data claims the stock intercooler outlet temperature rose quickly during repeated pulls while the Verticooler stayed far cooler in the same sequence.
Owner and forum discussion has treated the Verticooler as one of the benchmark VA top mounts for years. The recurring downside is not performance; it is fitment planning. Because the layout is different, you need to think about AOS/catch-can routing, hood ducting, and install space more carefully than with a conventional stock-location replacement.
Buy if: your VA WRX is tuned, driven hard, or heat-soaks often, but you still want top-mount response and short piping.
Skip if: you want a stock-looking quick swap or you are already at power levels where a front mount makes more sense.
Review evidence: strong specialist and forum signal. Public owner discussion repeatedly frames the Verticooler as a serious heat-soak solution, with fitment/accessory packaging as the main caution.
Best VA Street:
Mishimoto Street Performance Top-Mount Intercooler for 2015-2021 WRX
Check Latest PriceThe Mishimoto Street Performance TMIC is the right Mishimoto choice for a daily VA WRX that is stock, stage 1, or mild stage 2. It keeps compatibility with the stock charge pipe and engine cover, uses cast aluminum end tanks, and is marketed for stock-tune through stage 2 use.
Mishimoto lists a 76 percent increase in core volume, 81 percent increase in external fin surface area, 12 percent increase in flow, and a 34 degree F outlet-temperature reduction over the stock unit in its testing. That combination makes it a practical upgrade without forcing you into a full charge-pipe package.
Buy if: you want a cleaner conventional replacement and care about stock engine-cover compatibility.
Skip if: you are building toward a larger turbo or want the most aggressive Mishimoto setup.
Best VA Stage 2:
Mishimoto Race Top-Mount Intercooler and Charge-Pipe Kit for 2015-2021 WRX
Check Latest PriceThe Mishimoto Race kit is the better choice when the intercooler is part of a tuned VA WRX package. It includes the larger intercooler, charge pipe, air diverter, hoses, clamps, and brackets. Mishimoto lists a 625 cubic inch core, stock-to-500 whp support range, 35 degree F temperature drop, and gains of 15 whp and 8 wtq on its modified test car.
The tradeoff is packaging. Mishimoto says the race kit does not fit with the stock engine cover because of the larger size. That is not a functional problem for most tuned cars, but it matters if you want an OEM-looking bay.
Buy if: you have a tuned VA WRX and want a well-documented intercooler plus charge-pipe package.
Skip if: you want to keep the stock engine cover or you do not need the extra charge-pipe hardware.

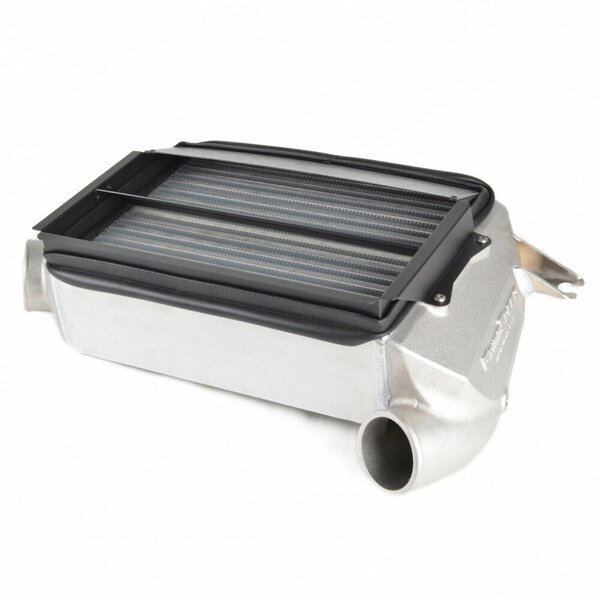

GrimmSpeed’s VA top mount is a fit-and-finish pick. The kit uses cast aluminum end tanks, a 13.1 x 10 x 3.75 inch bar-and-plate cross-flow core, a two-piece splitter, vibration-isolated mounting, and custom 5-ply couplers. GrimmSpeed also pressure tests, cleans, inspects, and seals the assembly before shipping.
Current direct availability can move around, but owner reviews on GrimmSpeed’s site are positive when the kit is in stock. The recurring praise is build quality, visual finish, and straightforward installation with a little finesse.
Buy if: you want a high-quality conventional VA TMIC with thoughtful ducting and strong hardware.
Skip if: it is out of stock or you want a kit with deeper independent temperature data.

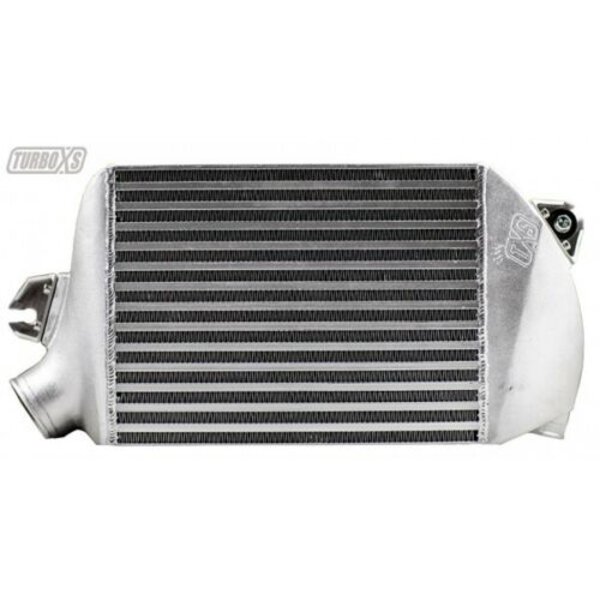

The TurboXS TMIC is the budget-oriented VA pick. It uses a 13 x 10 x 4 inch bar-and-plate core that TurboXS says is 68 percent larger than stock, includes mounting hardware, and is compatible with the OEM charge pipe.
The caution is that cheap and simple does not automatically mean best. TurboXS notes minor trimming is required for the OEM engine cover, and public review data is thinner than the premium options above. It is still worth considering if you want a basic large-core top mount and can buy it at a meaningful discount.
Buy if: you want a lower-cost conventional top mount and are keeping the OEM charge pipe for now.
Skip if: you want the strongest documentation, best owner signal, or most refined ducting.
Top Mount vs Front Mount Intercooler For A WRX
A top mount intercooler still makes sense for many WRXs. The piping is short, throttle response stays crisp, install is usually easier, and the intercooler is protected from road debris. For stock turbo, street-driven, and moderate tuned cars, a good TMIC is often the pragmatic answer.
A front mount intercooler starts to make more sense when the car is making enough power or being driven hard enough that top-mount heat soak remains a problem. Mishimoto’s VB front-mount development notes are useful here: the company compared stock, top mount, and front mount layouts and found the front mount gave more consistent outlet temperatures in repeated runs, though it adds more piping and install complexity.
The simplest rule: if your WRX is a street car with stock turbo or moderate bolt-ons, buy a good top mount. If it is a track, drag, big-turbo, or repeated-pull car where intake air temperature keeps climbing, start comparing front mounts before spending premium money on the biggest TMIC.
What To Know Before Buying A WRX TMIC
VB and VA parts do not interchange. A 2022+ WRX uses the FA24DIT/VB layout. A 2015-2021 WRX uses the FA20DIT/VA layout. Product pages that say “2015+” are usually old VA-era pages and should not be assumed to fit VB.
A tune is not always required, but it often unlocks the value. Most top mounts do not change MAF scaling the way an intake can, so many can be installed without an immediate tune. The real benefit is that a tuner can use lower, more stable charge temperatures to reduce knock sensitivity and hold power more consistently.
Charge-pipe compatibility matters. Some cores work with the stock charge pipe. Some kits include a charge pipe. Some charge pipes only work with OEM-style direct-replacement top mounts. Match the whole air path before ordering.
Ducting and shrouds matter as much as core size. A big core that is not sealed to the hood duct can let air spill around the intercooler instead of through it. Favor kits with proper splitters, shrouds, or ducting for your exact chassis.
Heat soak is use-case dependent. A larger TMIC helps most during repeated acceleration, hot weather, highway pulls, mountain driving, autocross, and track sessions. You may not feel much on a short stock-tune commute.
Engine-cover fitment can change. Some large VA kits do not retain the stock cover. Some require minor trimming. Decide whether engine-bay appearance matters before buying.
Check emissions/legal language. Intercoolers are not catalysts or tuning devices, but several brands still include off-road-use language on performance parts. Read the exact product page for your state.
Common WRX Intercooler Mistakes
Buying the biggest core without checking pressure drop: more volume is useful only if the core and end tanks flow well enough for your turbo and tune.
Ignoring the hood scoop seal: poor duct sealing turns a premium TMIC into a hot engine-bay decoration.
Mixing parts blindly: an intercooler, charge pipe, intake, bypass valve, and tune should be planned as a system.
Expecting peak dyno gains on a stock car: the best TMIC upgrade is often consistency, not a huge single-pull horsepower number.
Skipping install inspection: replace damaged gaskets, tighten clamps correctly, and pressure-check if the car suddenly underboosts after installation.
FAQ
Do you need a tune for a WRX top mount intercooler?
Usually no for a direct-replacement TMIC by itself, but a tune is recommended if the intercooler is part of a larger airflow package or you want to use the extra cooling for more boost and timing. Follow the specific manufacturer and tuner guidance for your setup.
Is a top mount intercooler worth it on a stock WRX?
It can be, but it is not the first place most stock cars need money. A TMIC makes more sense once the car is tuned, driven hard in heat, or showing repeat-pull power loss from heat soak.
Is a front mount better than a top mount on a WRX?
For high-power and track-style use, often yes. For a street car, a top mount keeps shorter piping, easier installation, and quicker response. The right choice depends on power goal and how often the car heat soaks.
What does a WRX charge pipe do?
The charge pipe carries compressed air between the turbo/intercooler path and the throttle body. Aftermarket charge pipes can improve flow and durability, but compatibility depends on the intercooler and chassis.
Why does Subaru use a top mount intercooler?
The WRX layout allows Subaru to feed a short top-mounted intercooler through the hood scoop. The short path helps response and packaging. The downside is heat soak because the intercooler sits above the engine.
Bottom Line
For a 2022+ VB WRX, start with the ETS TMIC if you want the best balance of current feedback, fitment, and value. Choose PERRIN if price and broad 2022-2026 fitment matter more, Mishimoto if you want a complete documented kit, and Process West if you want the premium top-mount route.
For a 2015-2021 VA WRX, the Process West Verticooler remains the most compelling serious top mount. Mishimoto is the easy street/stage 2 recommendation, GrimmSpeed is the fit-and-finish pick when available, and TurboXS is the lower-cost option.
