The best wheels for a Subaru WRX are not necessarily the widest or most aggressive set. A wheel that fits a VA WRX may be wrong for a VB, and a setup that clears the base brakes may not clear STI, TR, or WRX tS hardware. Offset, tire size, ride height, hub bore, load rating, construction, and brake clearance all matter.
Quick answer: the Enkei RPF1 is the best overall value for a street or autocross WRX, the Apex SM-10 is the best track-focused choice, the Gram Lights 57DR is the best style/performance balance, the forged Volk Racing TE37 SAGA S-plus is the premium no-compromise pick, and the Sparco Terra is the practical rally or winter-wheel choice. For a straightforward VA or VB street setup, start with an 18x8.5 or 18x9 wheel in the correct 5x114.3 fitment and pair it with a suitable 245-width tire. Owners of older 5x100 cars must shop by exact year and trim.
Choose Your WRX Wheel Fitment
How We Chose These WRX Wheels
This guide compares current manufacturer fitment information, wheel-size references, retailer listings, brake-clearance notes, and WRX owner discussions. Sources checked include Subaru’s current WRX wheel and tire specifications, Enkei’s RPF1 specifications, RAYS’ 57DR catalog, RAYS’ TE37 SAGA S-plus documentation, and chassis-specific retailer fitment guides. We did not physically test every wheel. Treat the vehicle door placard, wheel manufacturer fitment tool, and brake template as the final authority for your exact trim.
The most important criteria are correct bolt pattern and hub fit, documented brake clearance, sensible width and offset, load rating, construction quality, replacement availability, and whether the setup works with the tire size and suspension height you actually plan to run. We weighted fitment and safety more heavily than popularity or color choice.
| Factor | Weight | What mattered |
|---|---|---|
| Fitment and brake clearance | 30% | Bolt pattern, width, offset, spoke/barrel clearance, hub bore |
| Strength and construction | 20% | Cast, flow-formed, or forged construction; published standards and load data |
| Street and track usefulness | 20% | Tire support, weight, sidewall options, replacement availability |
| Value | 15% | Performance and support relative to price category |
| Brand and fitment support | 10% | Current size catalog, technical documentation, dealer network |
| Style and finishes | 5% | Useful black, bronze, gold, silver, and rally-inspired options |
Best Subaru WRX Wheels Compared
| Wheel | Best for | Construction | Typical WRX direction | Main drawback |
|---|---|---|---|---|
| Enkei RPF1 | Best overall value | MAT-process cast/formed rim | 17- or 18-inch street/autocross setup | Thin spokes do not suit every build; verify big-brake clearance |
| Apex SM-10 | Track and HPDE | Flow formed | 18-inch square performance setup | Premium price over mainstream cast wheels |
| Gram Lights 57DR | Style plus performance | Cast one-piece | 18-inch VA/VB street setup | Heavier and less premium than a forged TE37 |
| Volk Racing TE37 SAGA S-plus | Premium forged build | Forged one-piece | 18-inch performance setup | Expensive and desirable enough to attract counterfeits |
| Sparco Terra | Winter and rally style | Cast | 17-inch setup with more tire sidewall | Not the lightest track-oriented option |
WRX Wheel Fitment at a Glance
| Chassis | Bolt pattern | Common factory direction | Practical aftermarket starting point | Important warning |
|---|---|---|---|---|
| 2022+ VB WRX | 5x114.3 | 17x8 or 18x8.5 | 18x8.5 to 18x9.5, commonly around +38 to +45 | Cladding and TR/tS brake clearance vary by setup. |
| 2015-2021 VA WRX | 5x114.3 | 17x8 or 18x8.5 | 18x8.5 to 18x9.5, commonly around +38 to +45 | STI Brembos and lowered cars need a real clearance check. |
| 2008-2014 WRX | 5x100 | 17-inch factory fitments | 17x8 to 18x9 after checking hub and fender clearance | Do not assume a VA wheel fits. |
| 2008-2014 STI | 5x114.3 | 17- or 18-inch factory fitments | Brake-documented 17- or 18-inch fitment | STI Brembo clearance matters. |
| 2002-2007 WRX | 5x100 | 16- or 17-inch factory fitments | Conservative 17-inch fitment is the safe starting point | Verify the exact year and tire diameter. |
| 2004 STI | 5x100 | 17-inch factory fitment | STI-specific 5x100 fitment | This one model year differs from later US-market STI cars. |
| 2005-2007 STI | 5x114.3 | 17-inch factory fitment | STI-specific 5x114.3 fitment | Do not order from a generic 2004-2007 listing. |
The table is a shopping starting point, not a universal approval list. Wheel spoke shape affects caliper clearance, so two wheels with identical diameter, width, and offset can fit differently.
Useful VA and VB wheel-and-tire combinations
| Use case | Wheel direction | Tire direction | Fitment character |
|---|---|---|---|
| Daily comfort or winter | 17x8 to 17x8.5 | 235/45R17 | More sidewall and pothole protection; confirm performance-brake clearance |
| OEM-like 18-inch daily | 18x8.5 | 245/40R18 | Conservative, easy-to-shop street combination |
| Street performance | 18x9 | 245/40R18 or validated 255 setup | Better tire support without automatically chasing maximum poke |
| Aggressive street/track | 18x9.5 | Commonly paired with 255-width performance tires | Offset, camber, ride height, and fender clearance become critical |
Do not copy a setup from a photo without knowing the tire model. A square-shouldered 255 can occupy more space than another tire carrying the same printed size, and wheel alignment changes the available clearance.
Best Wheels for 2022+ VB WRX

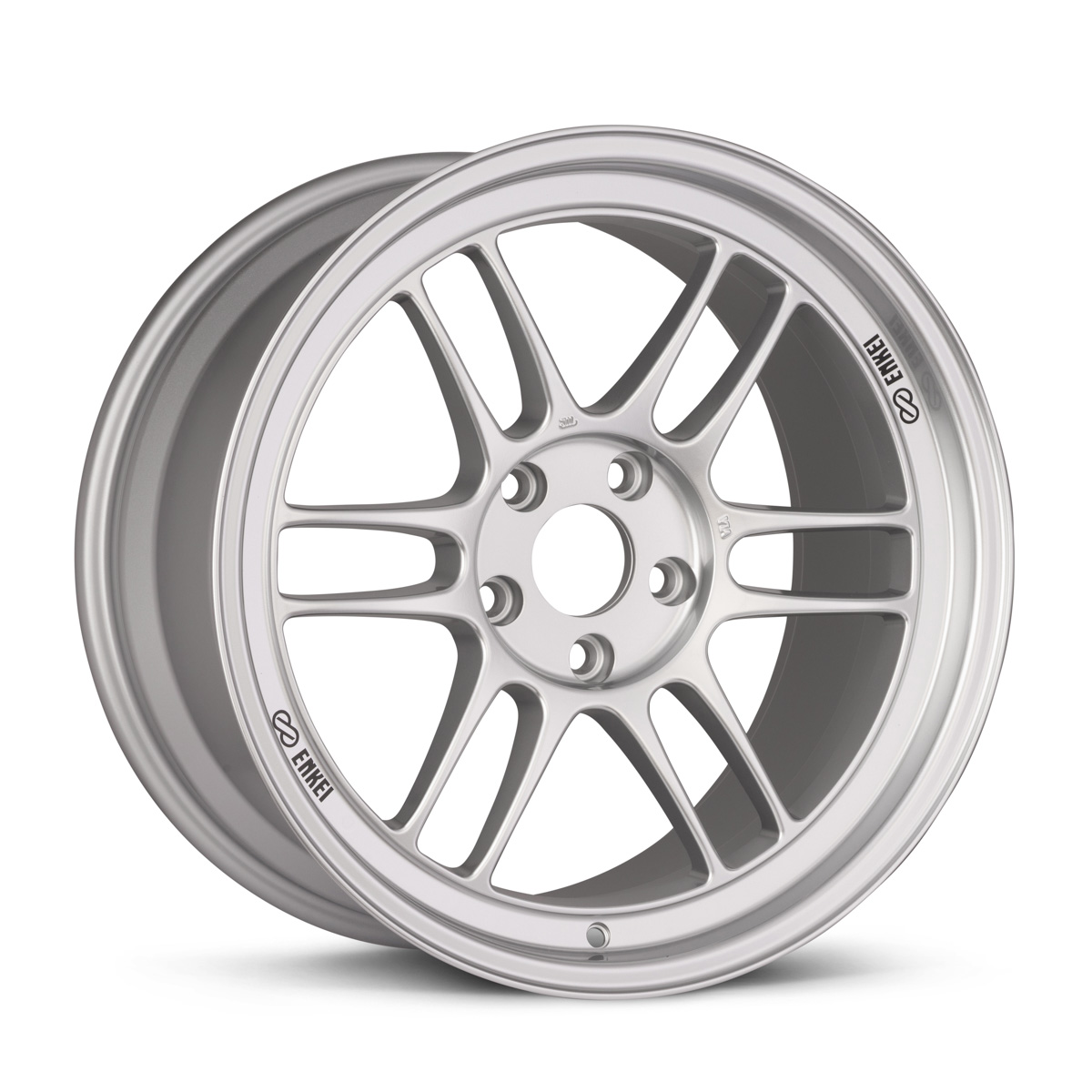

The Enkei RPF1 remains one of the easiest wheels to recommend when weight, price, and replacement availability matter. Enkei says its MAT process reduces wheel weight by 10-15% compared with its equivalent conventionally cast design. It is available in WRX-friendly bolt patterns and many widths, but the exact spoke profile and brake clearance still depend on the selected size. For a daily VB, a conservative 18-inch width with a 245 tire is easier to live with than an extreme low-offset setup.
Buy if: you want a lightweight performance wheel with a large established fitment catalog.
Skip if: you want a deep-dish appearance or a wheel chosen purely for styling.

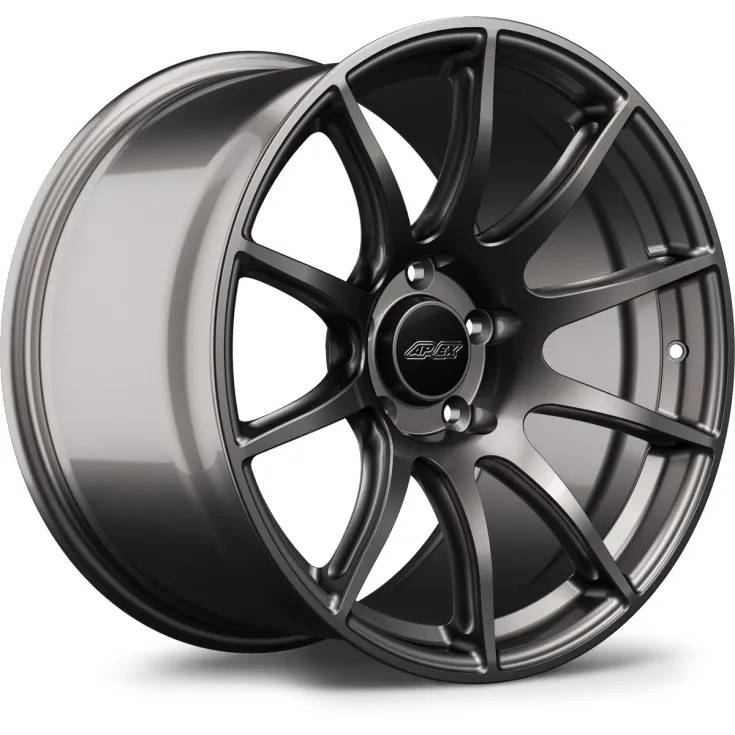

Apex earns the premium recommendation because its fitment documentation is unusually useful for performance buyers. The important decision is not simply 18 versus 19 inches; it is selecting a width and offset that clears the brakes, leaves room for the tire sidewall, and does not create rubbing after lowering.
Buy if: you want a serious street-and-track wheel and will verify the exact brake package.
Skip if: the budget is tight or you need an inexpensive replacement after pothole damage.

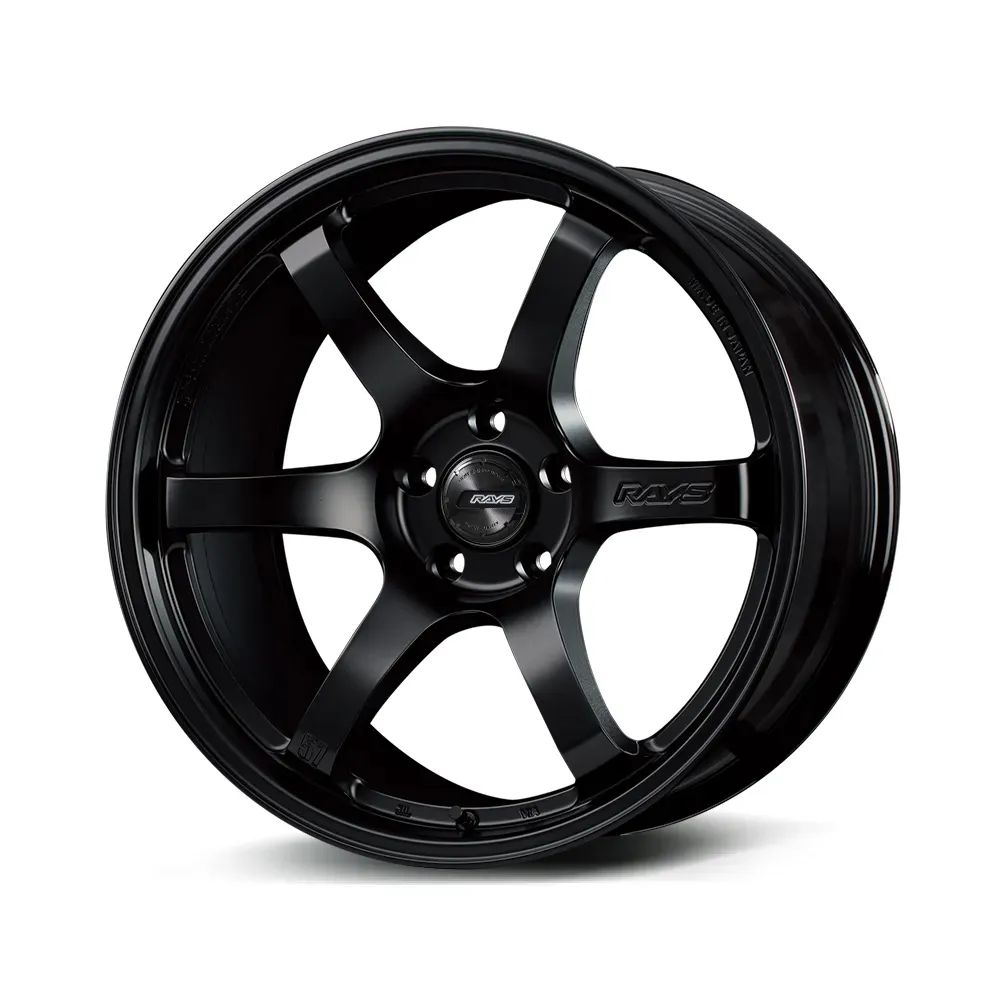

The Gram Lights 57DR is the middle ground between inexpensive replica-style wheels and premium forged wheels. RAYS lists it as a cast one-piece wheel offered in 15-, 17-, 18-, and 19-inch sizes, including 5x114.3 applications. Its simple six-spoke layout works with the WRX shape and is easy to clean compared with a dense mesh design.
The tradeoff is that the 57DR is bought partly for its appearance and brand appeal. It does not deliver the forged construction of the TE37, and not every diameter/offset clears every Subaru brake package.
Buy if: you want a recognizable black or motorsport-style wheel without moving to forged-wheel pricing.
Skip if: lowest possible weight or maximum value per dollar is the only priority.

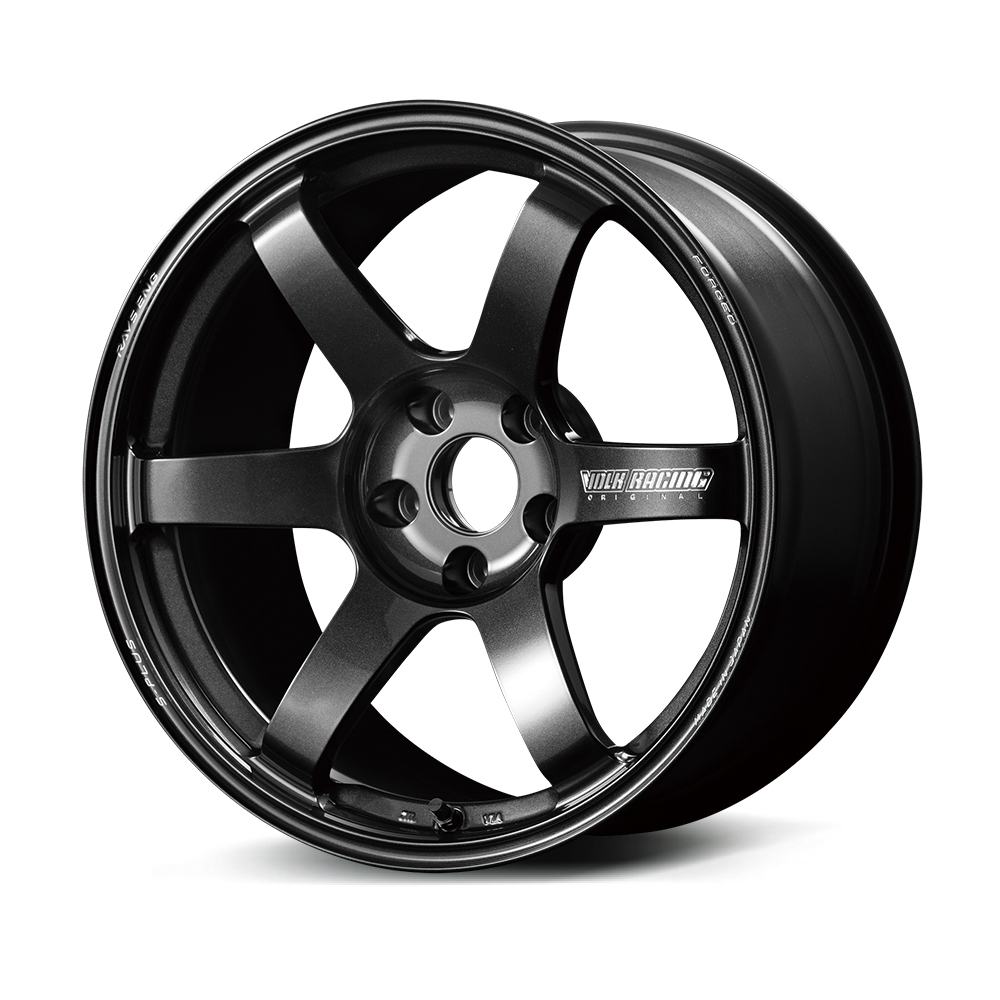

The TE37 SAGA S-plus is the premium pick because it combines a forged one-piece construction with a broad performance-size catalog and a six-spoke design engineered around strength and rigidity. RAYS states that the S-plus clears its JWL+R Spec 2 testing standard, but you still need to select a part number documented for your chassis and brakes.
Its drawbacks are price, lead time, and counterfeit risk. Buy from an authorized dealer and verify the wheel markings, included hardware, and exact specification rather than chasing a suspiciously cheap marketplace listing.
Buy if: you want a genuine forged wheel for a serious street, show, or track build.
Skip if: you park on rough city streets, expect frequent curb damage, or need a budget-friendly replacement.

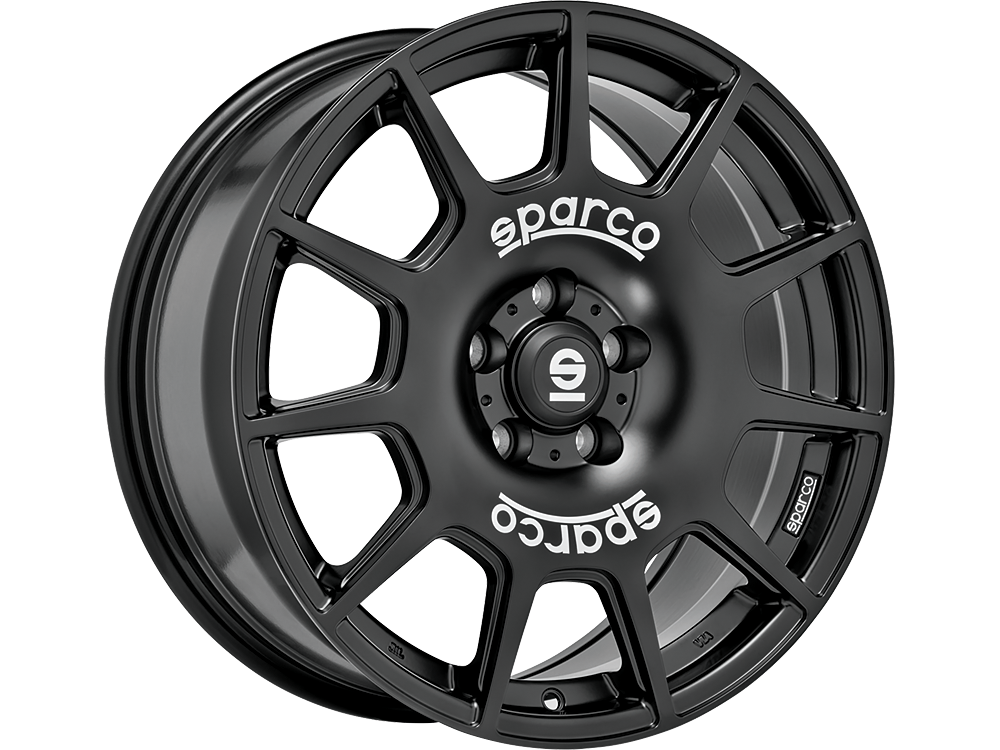

The Sparco Terra is a better match for owners who want a rally look, more sidewall, and a second winter wheel set. Confirm the listed load rating and brake clearance for your VB trim before buying; rally styling does not automatically mean every Subaru application fits.
Buy if: you want practical sidewall and winter/rally character.
Skip if: you want the lightest possible wheel for track use.
VB WRX TR and tS brake warning
The high-performance VB trims need their own clearance check. Subaru equips the 2025 WRX tS with 19x8.5 wheels, 245/35R19 tires, and six-piston front/two-piston rear Brembo calipers. That does not mean every aftermarket 19-inch wheel clears, and it does not mean an 18-inch wheel cannot clear. It means diameter alone is not enough: use a tS/TR-specific fitment listing or brake template before ordering.
Best Wheels for 2015-2021 VA WRX
The VA is more forgiving than the VB visually because it does not have the same wide plastic cladding, but that does not make aggressive fitment harmless. A 9.5-inch wheel can work on a VA, yet alignment, tire shoulder, ride height, and camber determine whether it rubs.
For most street cars, 18x8.5 or 18x9 with a moderate positive offset is the sensible zone. If the car is lowered, plan the wheel, tire, and alignment together rather than buying wheels first and trying to solve rubbing afterward.
The RPF1, SM-10, 57DR, and TE37 above are all strong VA candidates in the correct 5x114.3 specification. For an STI with factory Brembos, use a manufacturer brake template or documented STI fitment; the bolt pattern alone proves nothing about spoke clearance.
VA WRX versus VA STI fitment
Do not treat VA WRX and VA STI fitment as interchangeable just because both use 5x114.3. The STI Brembo calipers require more spoke and barrel clearance. A wheel can bolt onto the hub and still contact the caliper. A test fit or printable brake template should happen before tires are mounted, because mounted-wheel returns are often restricted.
Older WRX and STI Wheel Fitment
The 2002-2014 years are where the most expensive mistakes happen. Most WRX models in this span use 5x100, but US-market STI fitment changes from 5x100 in 2004 to 5x114.3 for 2005-2007, and the later STI continues with 5x114.3. A wheel advertised as “Subaru WRX/STI fitment” may still be wrong for your car.
Before ordering, confirm:
- Model year and whether the car is WRX or STI.
- 5x100 versus 5x114.3 bolt pattern.
- Hub bore and whether hub-centric rings are needed.
- Factory or aftermarket brake caliper clearance.
- Tire diameter and load rating.
- Fender, strut, and inner-lip clearance at full steering lock.
WRX Wheel Fitment Basics
Cast versus flow-formed versus forged wheels
Most affordable aftermarket wheels are gravity- or low-pressure-cast. They can be suitable for street use when they carry an appropriate load rating and recognized safety certification, but achieving strength generally requires more material and weight. Flow-formed wheels begin with a cast center and use rollers to form the barrel, often improving the weight-to-strength balance. Forged wheels are shaped under high pressure and can deliver excellent strength at lower weight, but the price increase is substantial.
Construction is not a complete quality score. A reputable, correctly rated cast wheel is a better buy than a suspicious unbranded “forged-style” wheel with no traceable testing or replacement support.
Wheel width and offset
Width controls how much tire you can support and how close the inner barrel gets to the strut. Offset controls where the wheel sits relative to the hub. A lower offset pushes the wheel outward; that can improve stance but increases fender-rub risk and steering kickback.
For example, moving from an 18x8.5 +55 factory-style wheel to an 18x9.5 +38 wheel adds width on both sides and pushes the outer lip much farther toward the fender. The change is larger than the 17 mm offset difference alone suggests. Use a wheel-offset calculator, then physically confirm inner suspension and outer fender clearance.
Tire size matters as much as wheel size
Common VA and VB tire directions include 235/45R17 and 245/40R18, but your final size must match the wheel, trim, and AWD circumference requirements. Keep all four tires matched in brand, model, size, construction, load rating, and similar wear. Use the existing WRX tire guide for seasonal tire choices.
Lowering changes the answer
Lowering springs and coilovers alter camber and suspension travel. A wheel that clears at stock height can rub after lowering, while a very aggressive wheel can force excessive negative camber. Read the WRX lowering-spring guide and WRX coilover guide before choosing an aggressive fitment.
Brake clearance is not optional
WRX, STI, TR, and tS brake packages do not all have the same caliper shape. Spoke design, barrel diameter, and wheel weights can change clearance. Ask the wheel seller for a brake template when fitment is not explicitly documented for your trim.
TPMS, lug nuts, and hidden costs
Budget beyond the advertised wheel price. A complete installation can require new TPMS sensors, valve stems, hub-centric rings, narrow tuner lug nuts, mounting and balancing, and an alignment. Subaru commonly uses M12x1.25 wheel studs, but confirm the thread and lug-seat shape for your year. Conical, ball, and flat-seat hardware are not interchangeable.
If the aftermarket wheel has a larger center bore, use the correctly sized hub-centric ring when the wheel maker calls for one. Rings help center the wheel during installation; the lug hardware still provides the clamping force.
Common WRX Wheel-Buying Mistakes
The most common mistake is shopping by appearance alone. “18x9.5” is not enough information without offset, bolt pattern, hub bore, brake clearance, tire size, and suspension height. Other expensive mistakes include buying four tires that are not close enough in circumference for the AWD system, using spacers without checking stud engagement, and assuming a wheel fits because it fits an Impreza or BRZ.
Do not buy a staggered setup for a normal WRX street car. Matching all four corners is simpler, safer for the AWD system, and easier to rotate for even wear.
FAQ
What size wheels fit a Subaru WRX?
Common VA and VB street setups use 17- or 18-inch wheels, often 8 to 9.5 inches wide. The correct answer depends on the year, bolt pattern, brake package, tire, and ride height.
Are 5x114.3 wheels correct for a WRX?
They are the usual pattern for 2015+ VA and 2022+ VB WRX models. Older WRX and STI cars commonly use 5x100, so verify the year before ordering.
Do STI wheels fit a WRX?
Sometimes, but not automatically. Check bolt pattern, offset, tire diameter, hub fit, and brake clearance. STI wheels can be too aggressive or may require different hardware depending on the specific year and wheel.
Is 18x9.5 too wide for a WRX?
Not necessarily, but it is more sensitive to offset, tire choice, alignment, and ride height than an 18x8.5 or 18x9 setup. Treat it as a fitment that requires confirmation, not a universal recommendation.
What offset is best for a Subaru WRX?
There is no single best offset without wheel width. For common 18x8.5- to 18x9.5-inch VA/VB wheels, many aftermarket setups fall around +38 to +45, but the correct number depends on tire width, suspension, brakes, and desired fender position. Higher offset is not automatically safer because inner strut clearance can become the limiting factor.
Can I run 17-inch wheels on a WRX STI, TR, or tS?
Only when the exact wheel is documented to clear the brakes. Some 17-inch motorsport wheels clear particular Brembo packages, while other 18-inch designs do not because of barrel or spoke shape. Never order based on diameter alone.
Are lightweight wheels worth it on a WRX?
They can improve steering response and reduce unsprung and rotational mass, but the difference depends on how much weight is actually saved and which tire is installed. Do not sacrifice load rating, pothole resistance, or correct fitment just to chase the lightest published number.
Can a WRX use a staggered wheel setup?
A square setup with matching wheel and tire sizes at all four corners is the normal recommendation. It simplifies tire rotation and keeps rolling circumference consistent for the AWD system. A staggered appearance is not worth the added fitment and tire-management complexity on a normal street WRX.
Do I need hub-centric rings on WRX wheels?
Only when the wheel’s center bore is larger than the Subaru hub. A correctly sized hub-centric ring can center the wheel, but it does not solve incorrect bolt pattern, offset, load rating, or brake clearance.
Final Recommendation
For a daily VA or VB WRX, buy a properly documented 18-inch 5x114.3 wheel in a moderate width and offset, then match it with a 235- or 245-width tire appropriate for your trim. The Enkei RPF1 is the value default, Apex SM-10 is the track-focused choice, Gram Lights 57DR offers the best style/performance balance, Volk Racing TE37 SAGA S-plus is the premium forged pick, and Sparco Terra is the practical rally/winter alternative. Verify the exact wheel part number and brake clearance before checkout.
For more suspension and tire context, continue to the WRX tires guide, WRX brakes guide, and WRX mods hub.
